GB Details:
Timeline: Augest 17th - September 18th 206
Estimated Fulfillment: Q3 2027
Designer: NoNumbers
Case Specifications:
- Layout: 60%, WKL, 7U HHKB, 6U HHKB, WK
- Typing Angle: 6 Degree
- Front Height: 18.5mm
- EKH: 21.5mm
- Weight: 1.2kg
- Mount: Top, Gummy Oring
- Materials: 6063 Aluminum , Copper, Stainless Steel
Colorways:
| Name | Top | Bottom | Inner Weight | Outer Weight | Badge |

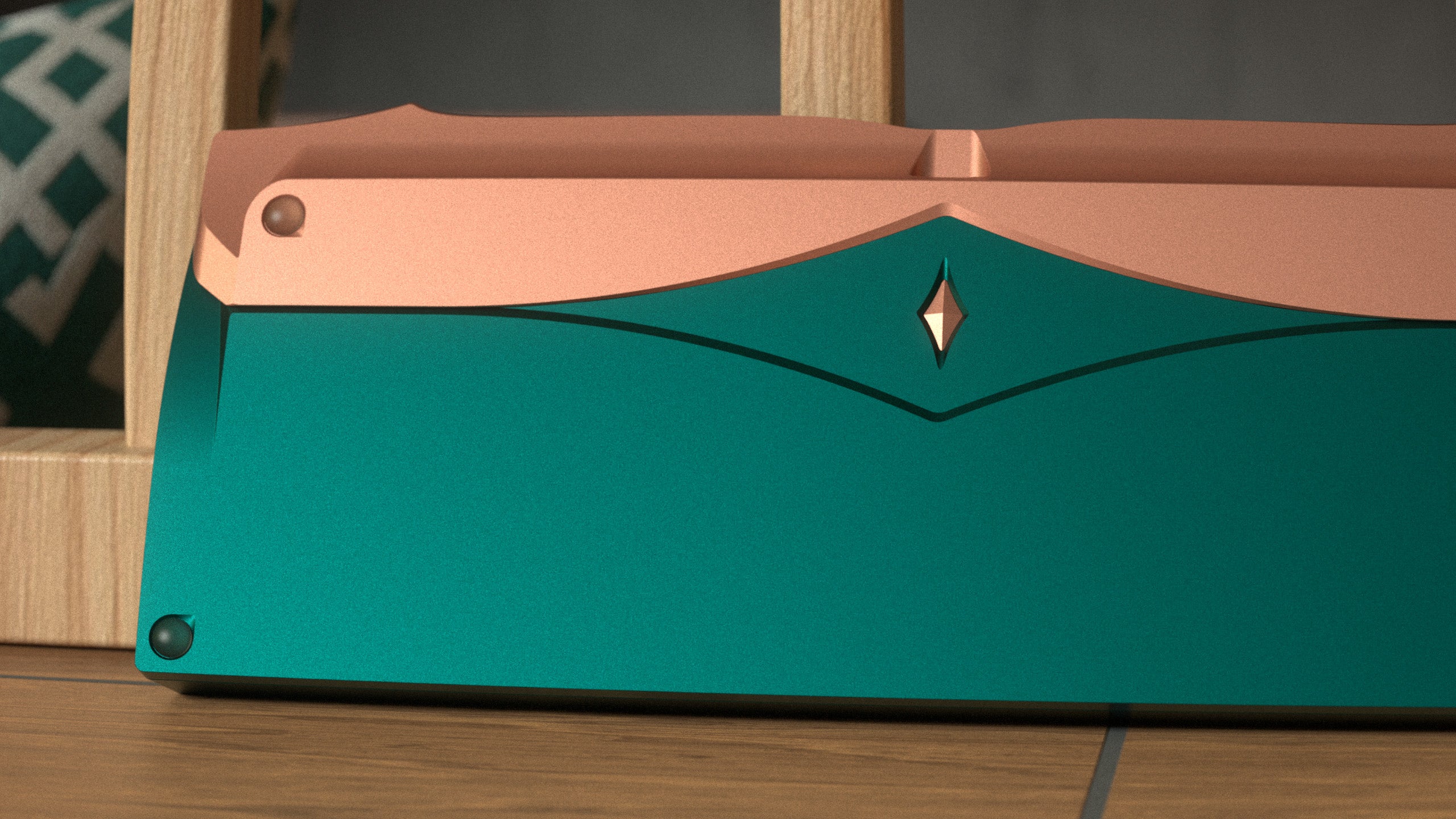

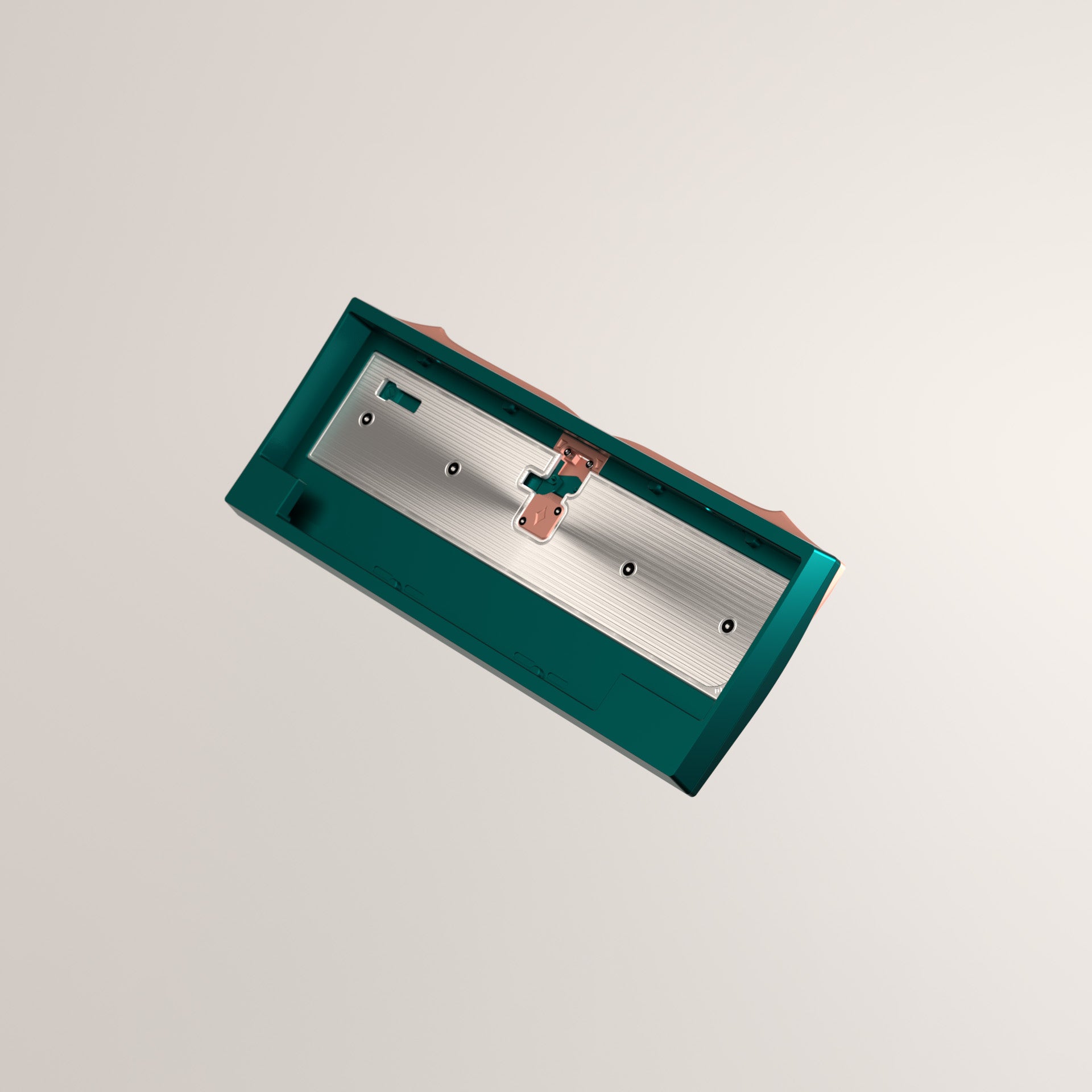

| Solar | Ano Teal | Ano Teal | MSS | SC | SC |

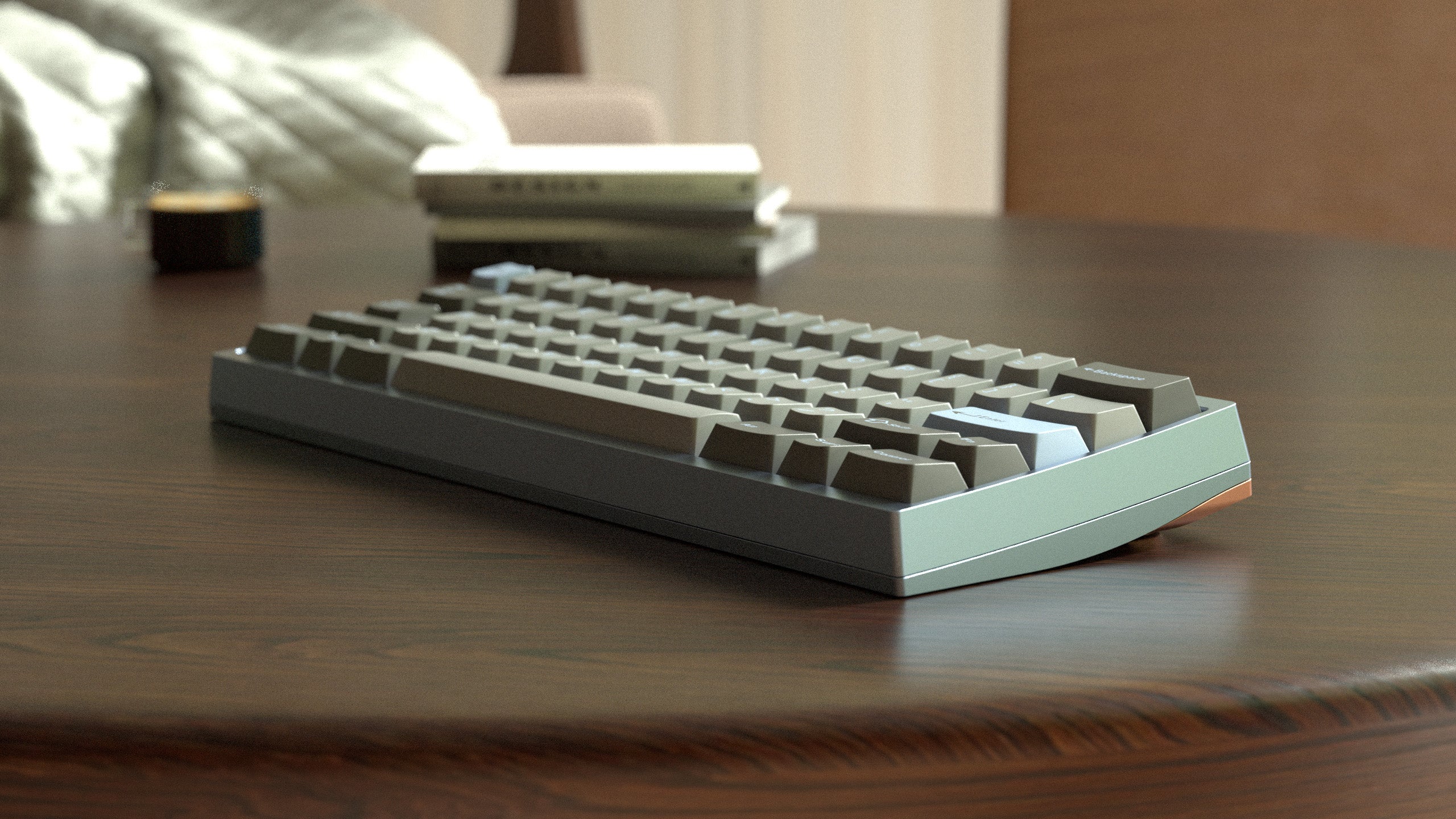

| Rain | Ano Light blue | Ano Light blue | MSS | SC | SC |

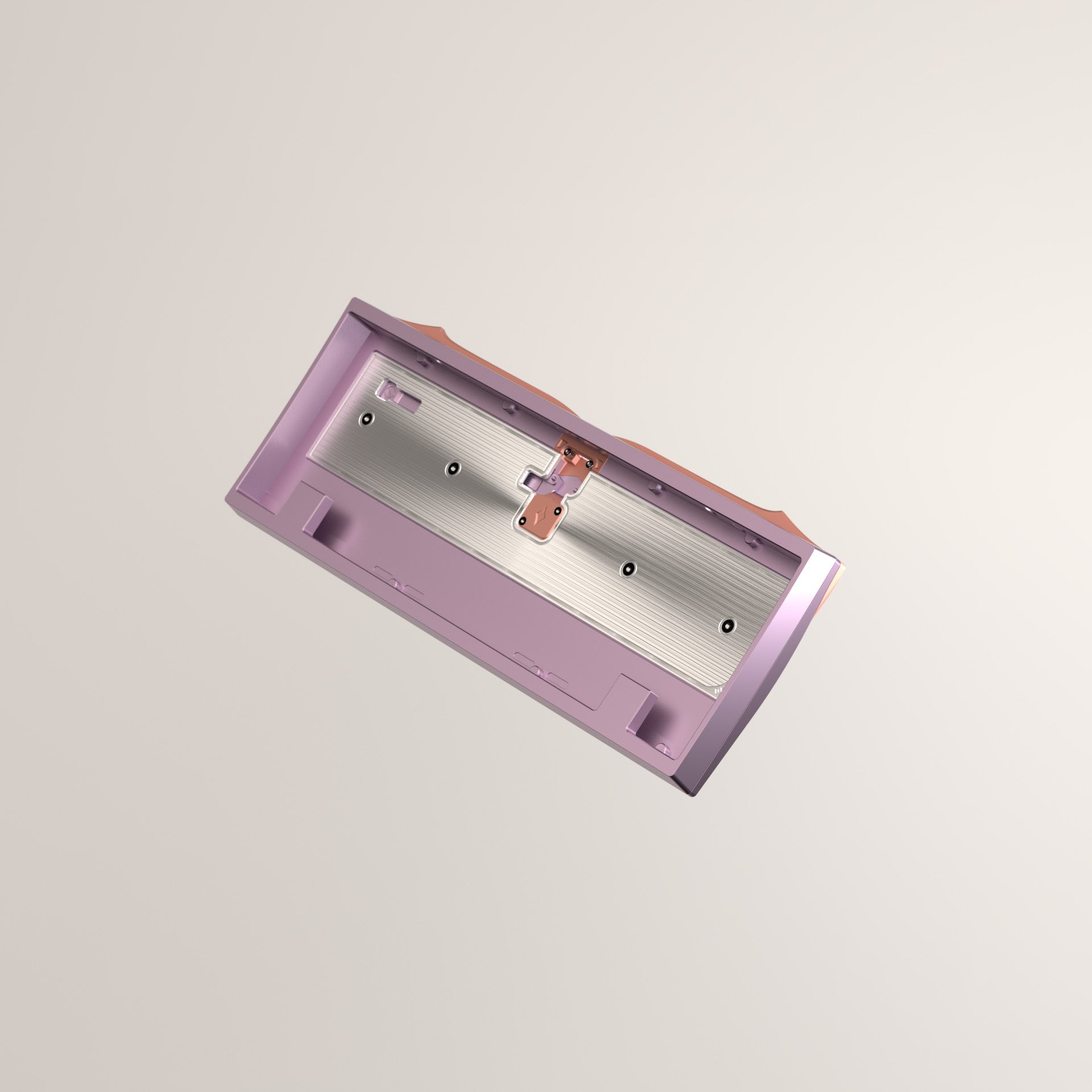

| Dusk Pink | Ano Pink | Ano Pink | MSS | SC | SC |

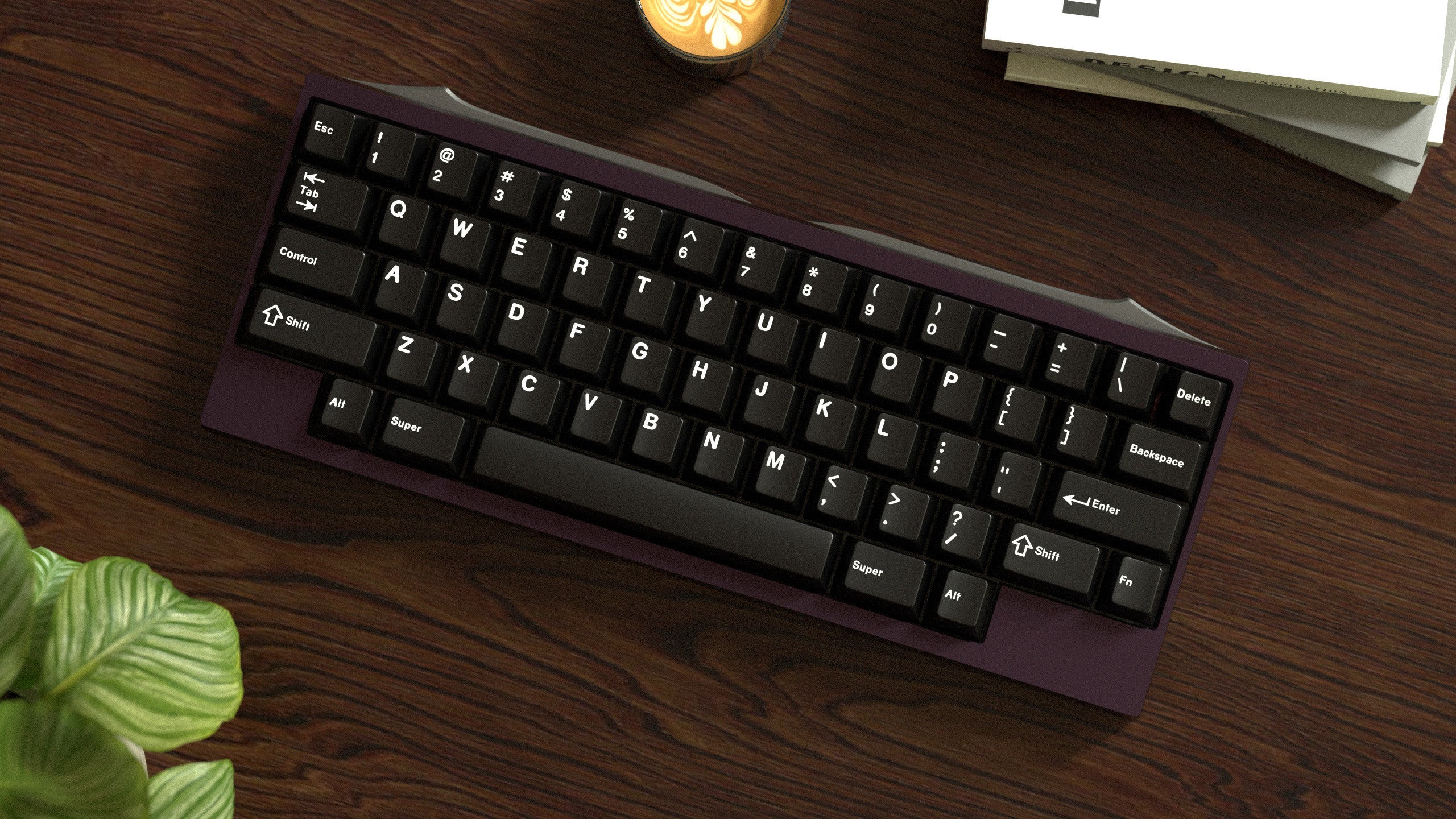

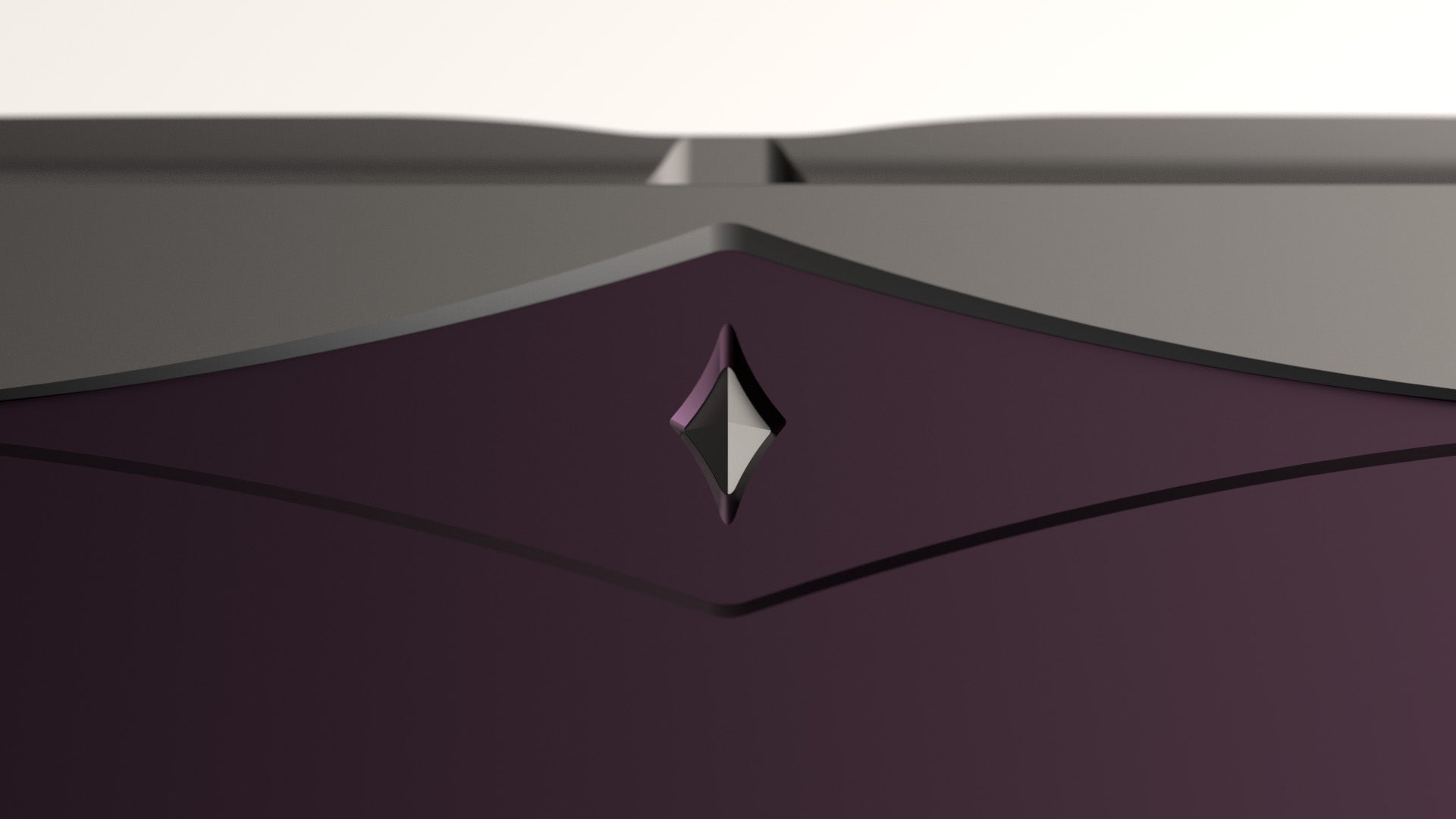

| Midnight Plum | Ano Plum | Ano Plum | MSS | SSS | SSS |

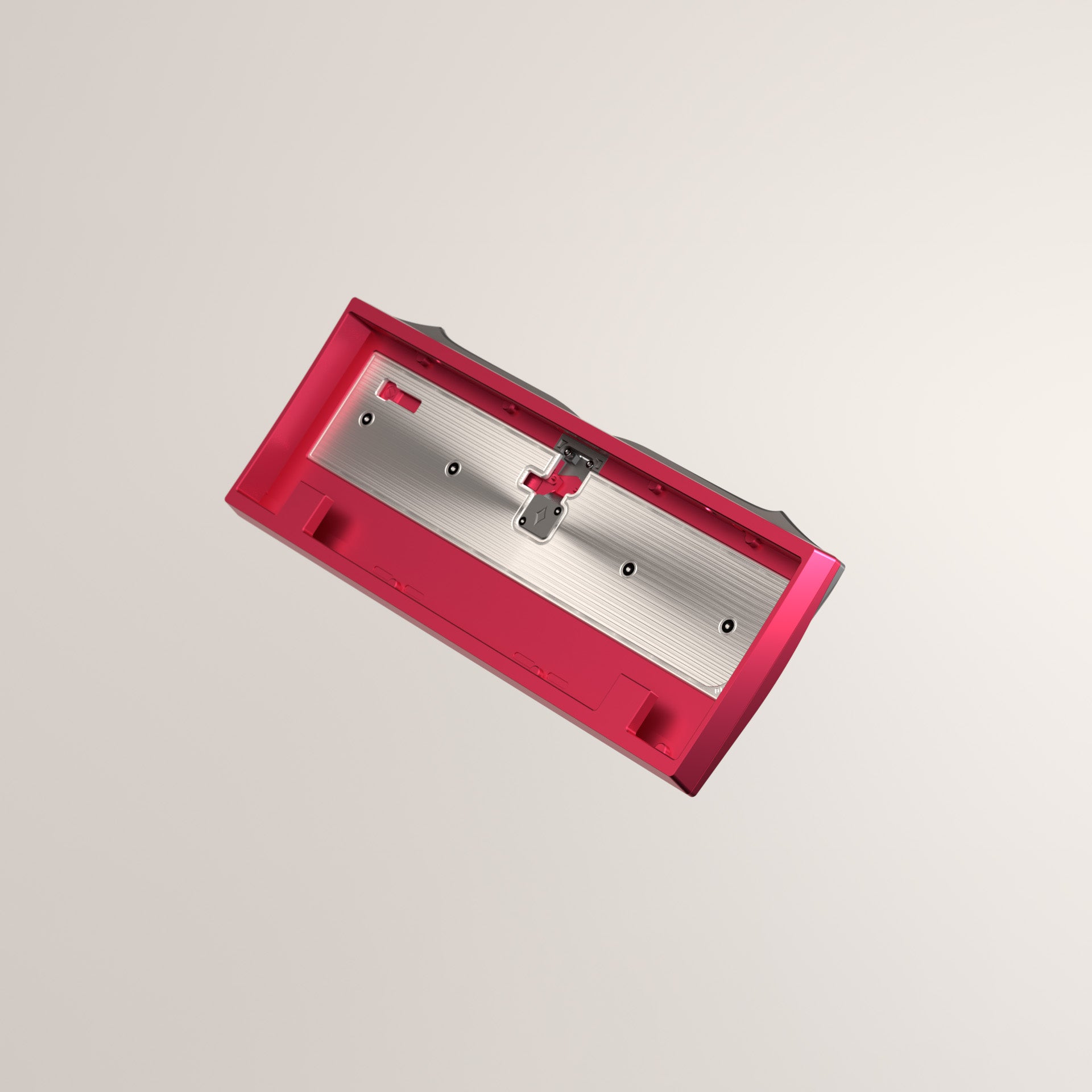

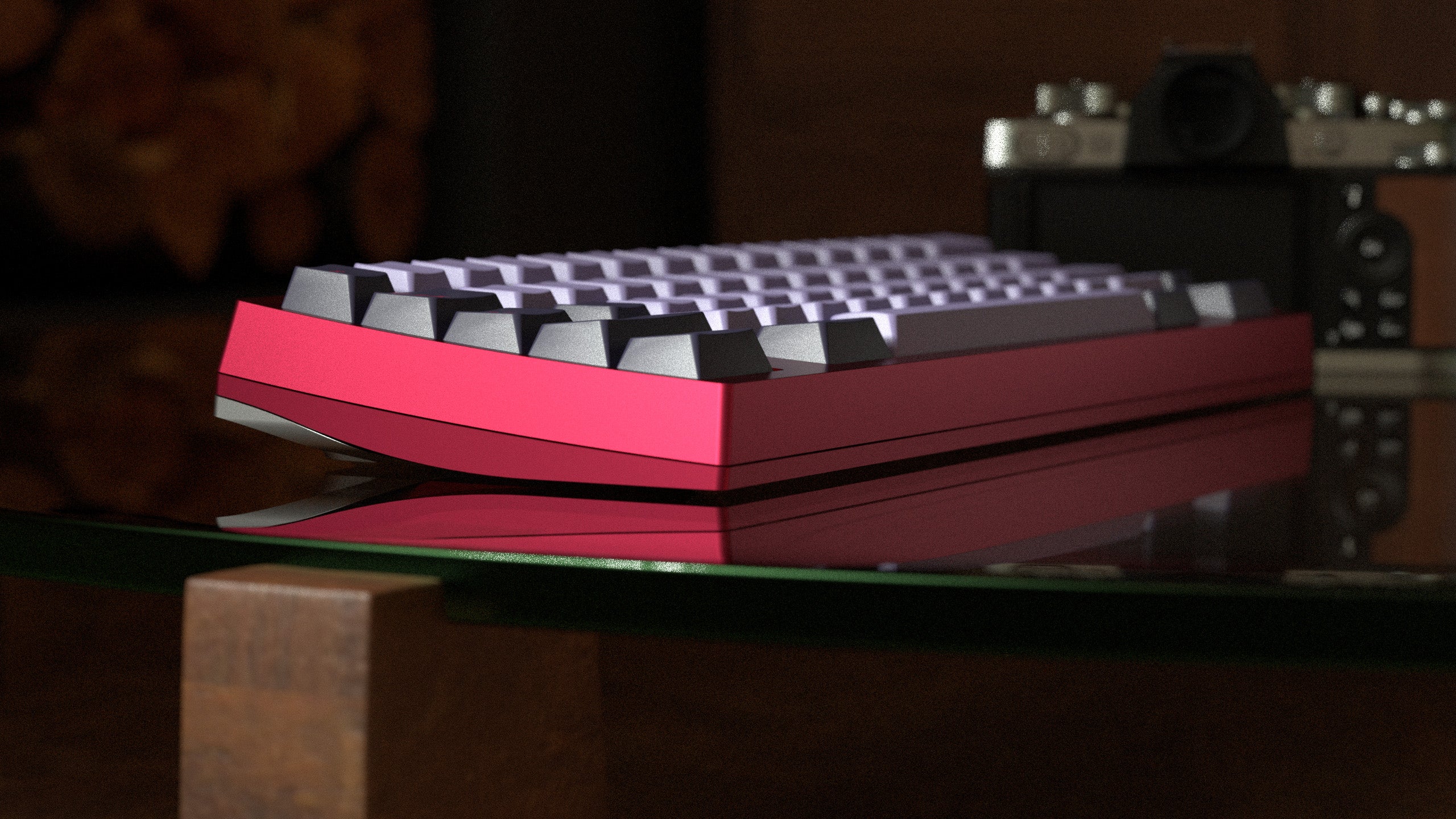

| Feral | Ano Pink/red | Ano Pink/red | MSS | SSS | SSS |
MSS = Machinist Stainless Steel
SC = Sandblasted Copper
SSS = Sandblasted Stainless Steel
PCB Specifications
- Material: FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and hotswap
- Designer: Gondolindrim
Kit Contents:
- Top case
- Bottom Case
- Inner Weight
- Outer Weight
- Badge
- Plate of Choice
- PCB of Choice
- Daughterboard
- Carrying Case
- Screws / Oring / Other assembly hardware
