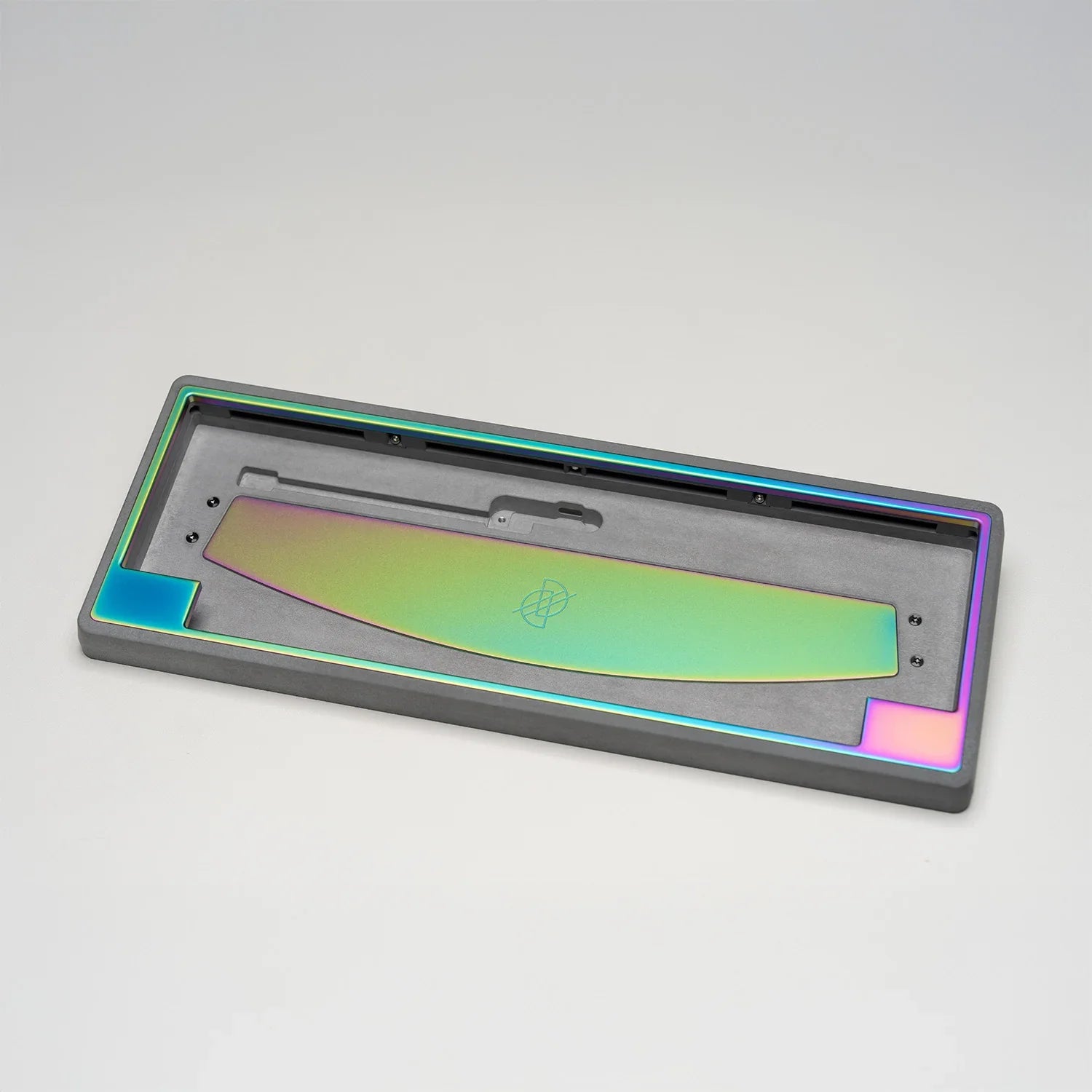

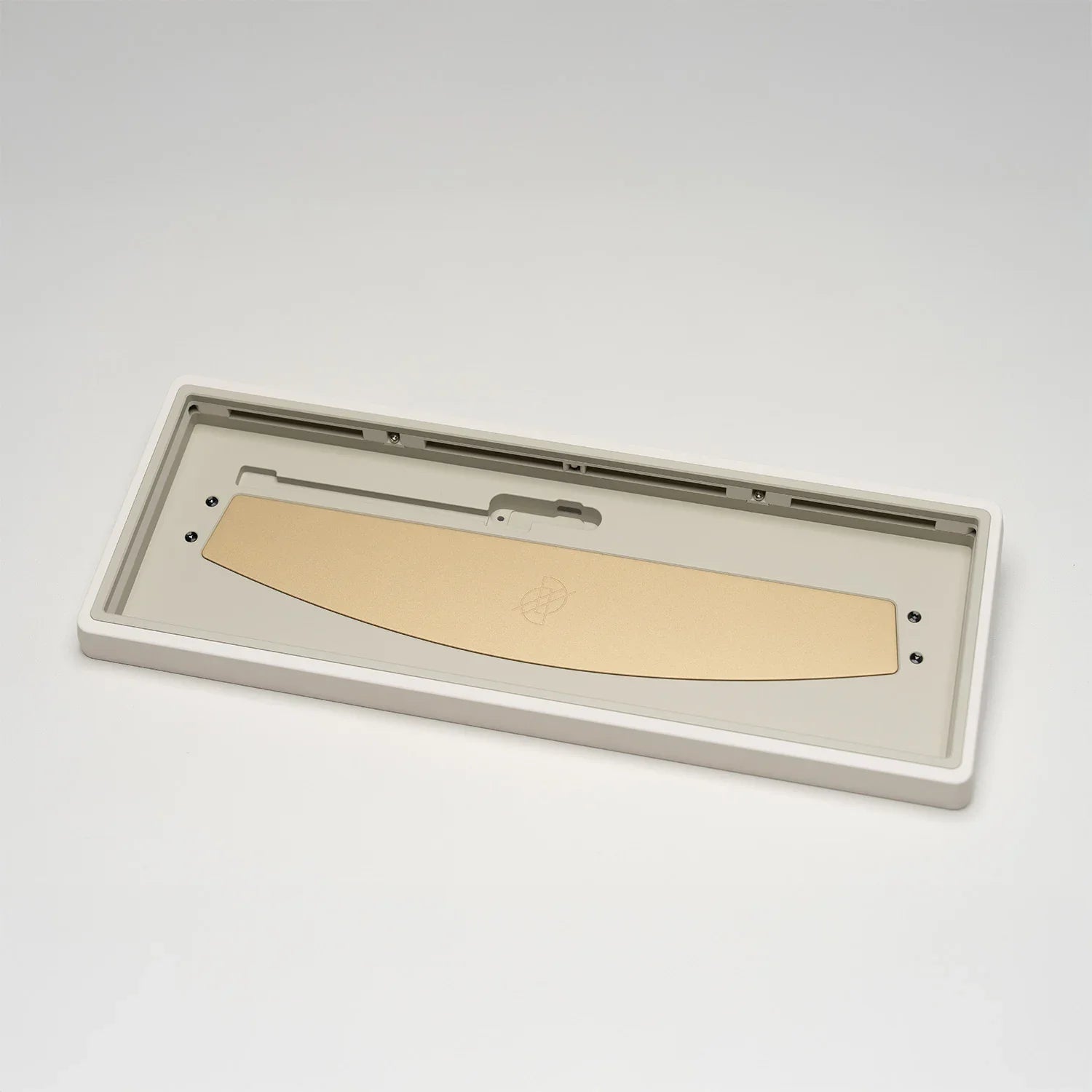

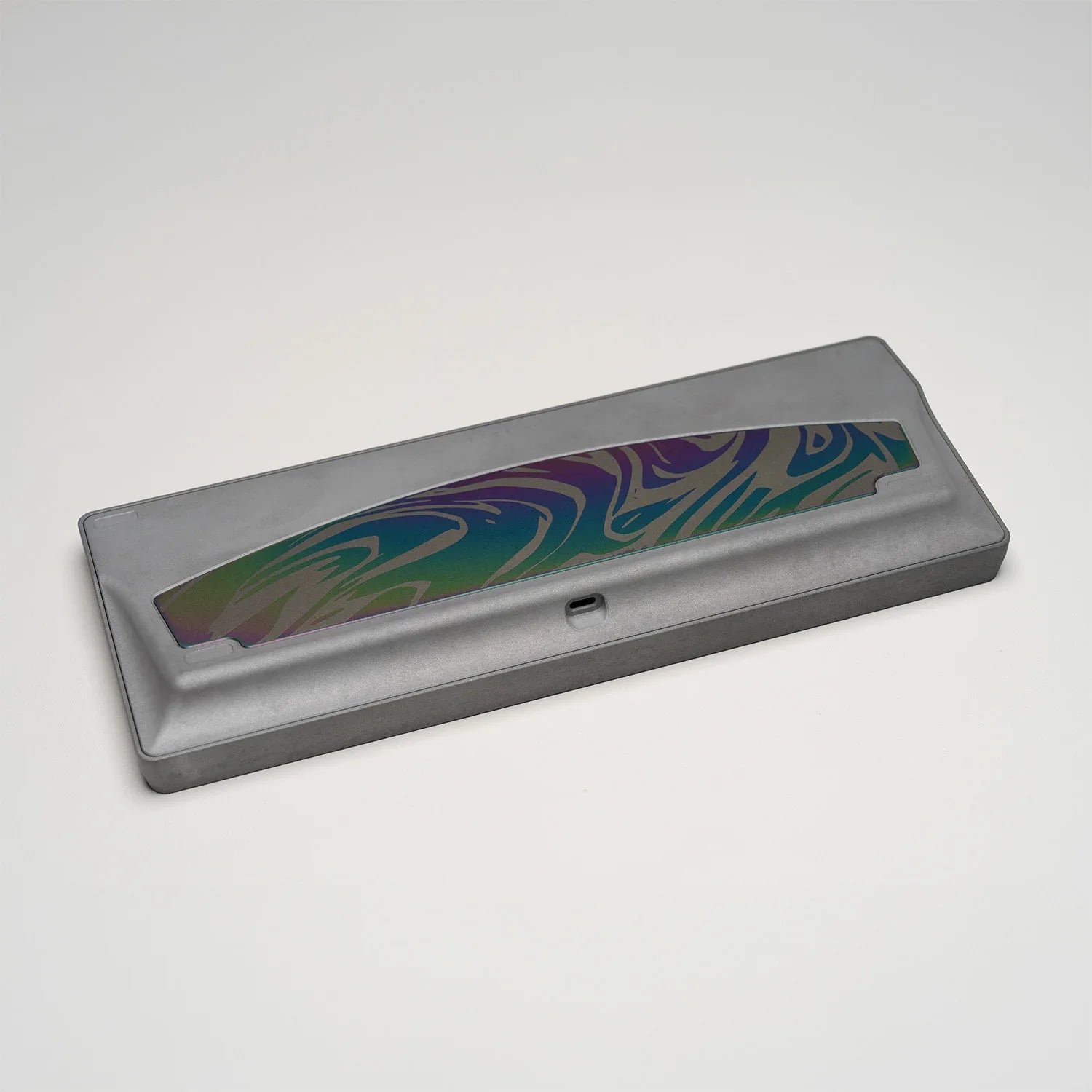

Pangea Mini R2 (Case only)

Pangea Mini R2 (Case only)

$409.00

ATK x QK Hex80 HE keyboard
$345.00

Available for pickup at Keybay Markham

Unavailable at

Choose a store to check local availability
Chilkey Slice 68 Magnetic HE Keyboard
$199.00$279.00

Available for pickup at Keybay Markham

Unavailable at

Choose a store to check local availability
Sold out

EVOWORKS EVO75 Keyboard
$235.00

Out of stock at Keybay Markham

Unavailable at

Choose a store to check local availability
Eweadn X87S Dual 8k SOCD Budget Mechanical Keyboard
$99.00

Available for pickup at Keybay Markham

Unavailable at

Choose a store to check local availability
Sold out

IQUNIX EV63 HE Magnetic Keyboard
From $235.00

Out of stock at Keybay Markham

Unavailable at

Choose a store to check local availability
Sold out

KBDfans GT-80 HE keyboard Case
$179.00

Out of stock at Keybay Markham

Unavailable at

Choose a store to check local availability
Sold out

KBDfans Holy80 HE keyboard Case
$285.00

Out of stock at Keybay Markham

Unavailable at

Choose a store to check local availability
Sold out

Luminkey Magger 68 HE keyboard
$99.00$169.00

Out of stock at Keybay Markham

Unavailable at

Choose a store to check local availability
M1X GH60 Keyboard Case ( For Wooting60 )
$199.00

Available for pickup at Keybay Markham

Unavailable at

Choose a store to check local availability
Melgeek Centauri 60 Hall Effect Magnetic Gaming Keyboard
$419.00

Available for pickup at Keybay Markham

Unavailable at

Choose a store to check local availability

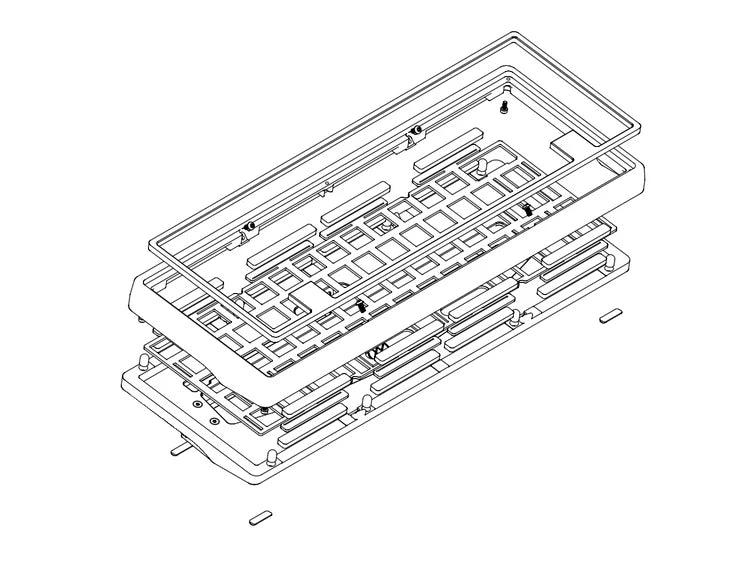

Pangea Mini is the successor to the Pangea Full Size. The mini has a similar top frame design that gives the keyboard a unique top-down look. The top frame also determines the layout, allowing users to easily switch the layout or aesthetic of their keyboard by simply changing out the top frame!

Case Specifications

Materials: 6063 Aluminum, Brass, Stainless Steel
Layout: 60% WK, WKL, HHKB
Typing Angle: 8.5 Degrees
Front Height: 17.5mm
EKH: 22.7mm
Weight: 1400-1600g
Mounting: Gasket

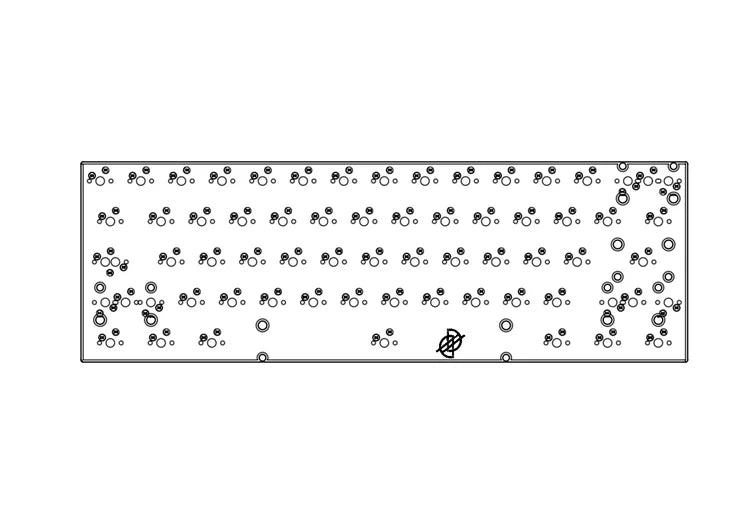

PCB Specifications

Material: Black FR4
Thickness: 1.6mm
Connectivity: JST to Unified Daughterboard
Customizability: VIA
Type: Solderable and Hotswap

Design Notes and Inspiration

Case Design

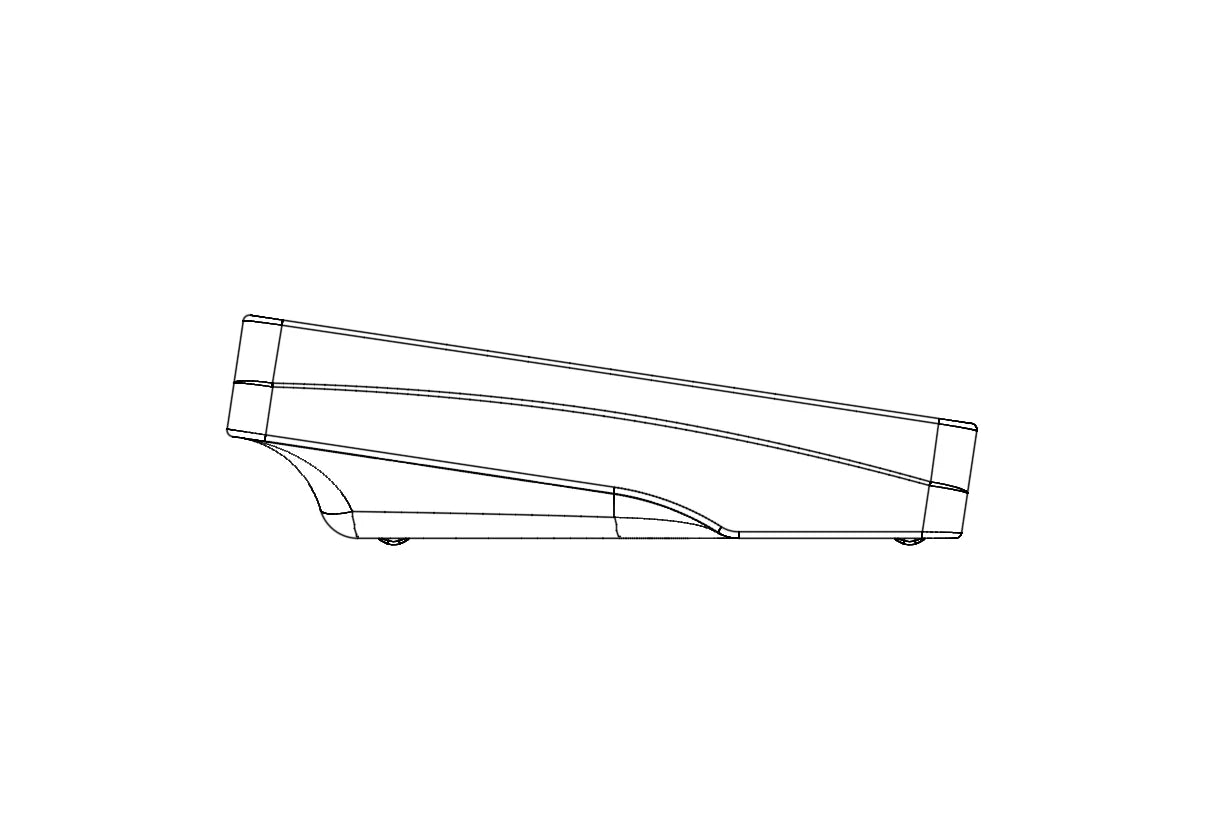

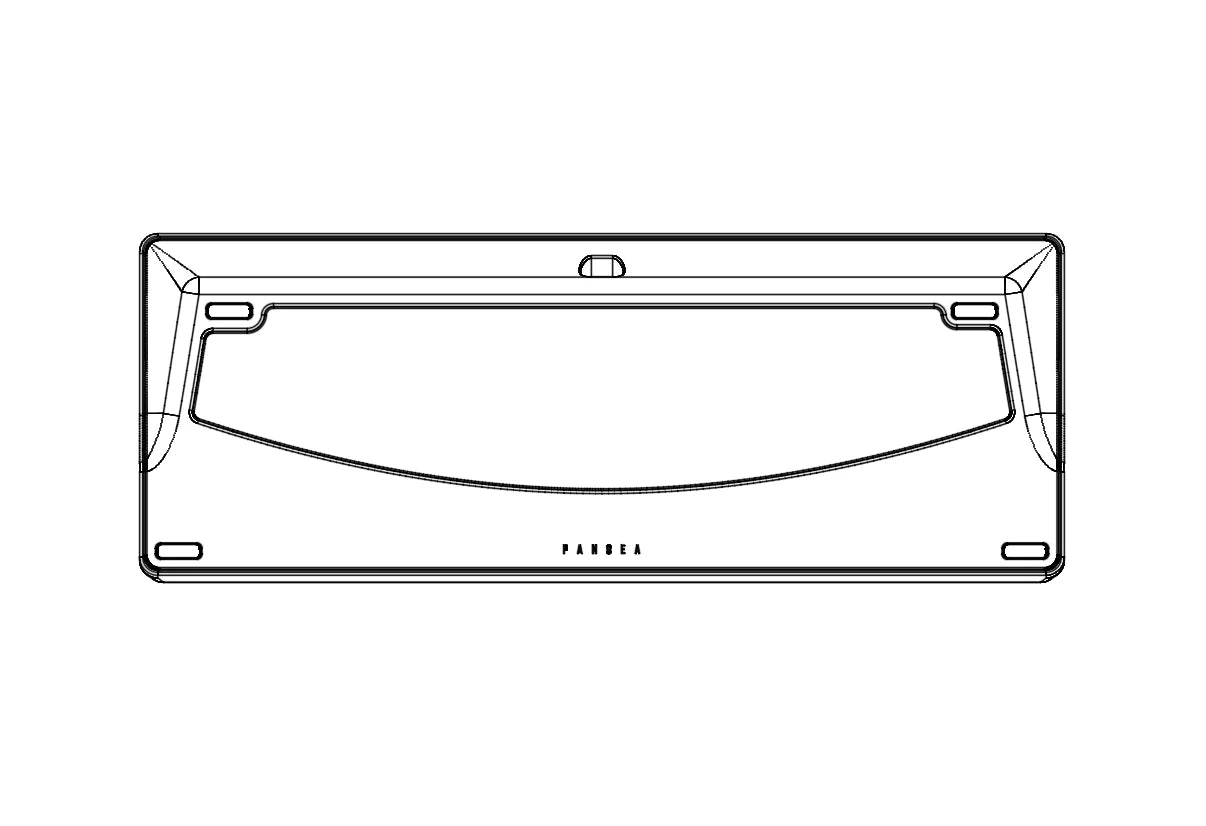

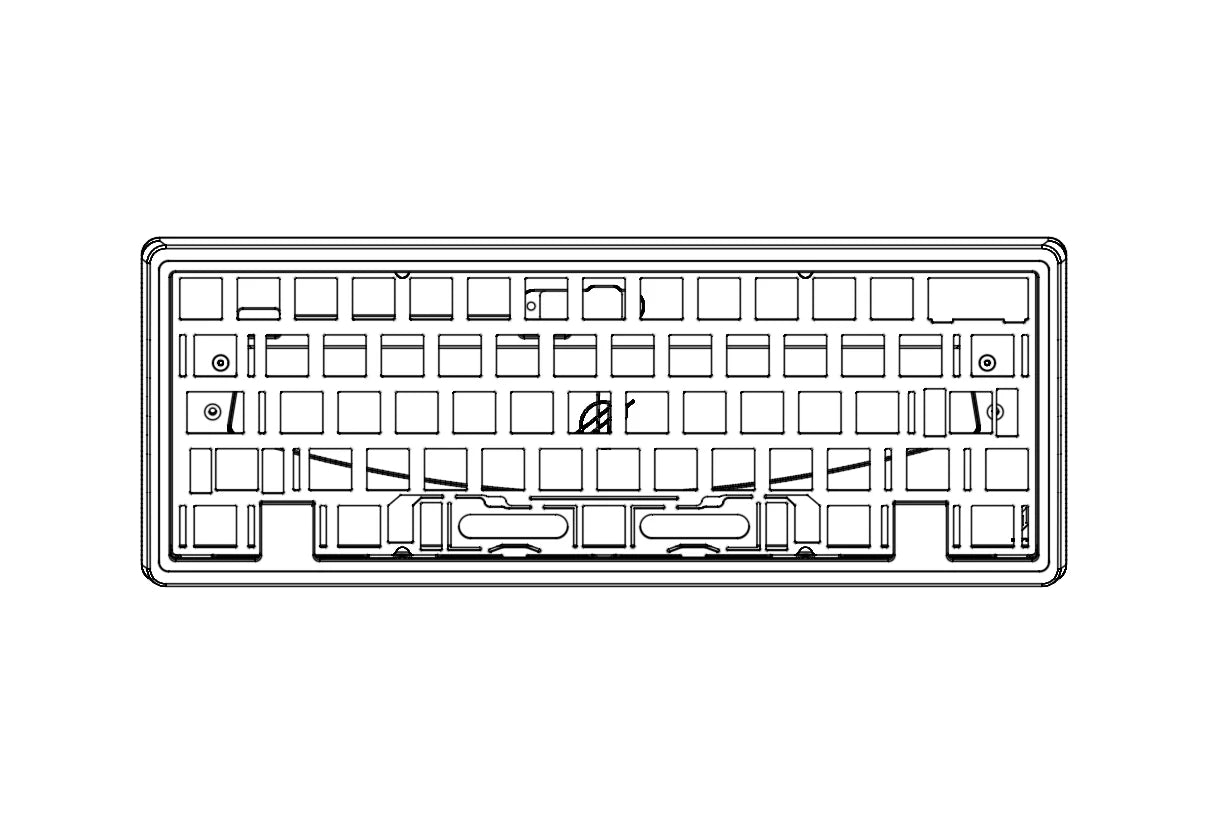

Pangea Mini takes many design elements from the Pangea Fullsize. The side profile shares the same arching HG style taper to give some depth when viewed from the side. The top view also showcases the interchangeable top frame. While Pangea Fullsize used this part to allow for a swappable numpad, Pangea Mini has different layout options offered in many different material and finishing options for a distinctive top down aesthetic.
