Name: Tofu60 3.0 Custom Color Keyboard Kit
Brand: KBDfans
Price: 96.0 CAD
Availability: OutOfStock

KBDfans TOFU60 3.0 standard | Custom edition | keyboard kit

The TOFU60 3.0 is the next evolution of the classic 60% custom mechanical keyboard kit. Featuring a premium aluminum case, two mounting options, and multiple PCB configurations (including hot-swap, dual-mode, and HE), this keyboard is perfect for enthusiasts looking for a high-quality customizable build.

Group Buy starting: 30 Dec 2025 | Deliver time: Q2 2026

If you would like to see how does your Tofu60 3.0 look like, you can visit KBDfans only Customize tool to confirm. After finalize your config, you can come back and select the exact same options from the drop down menus.

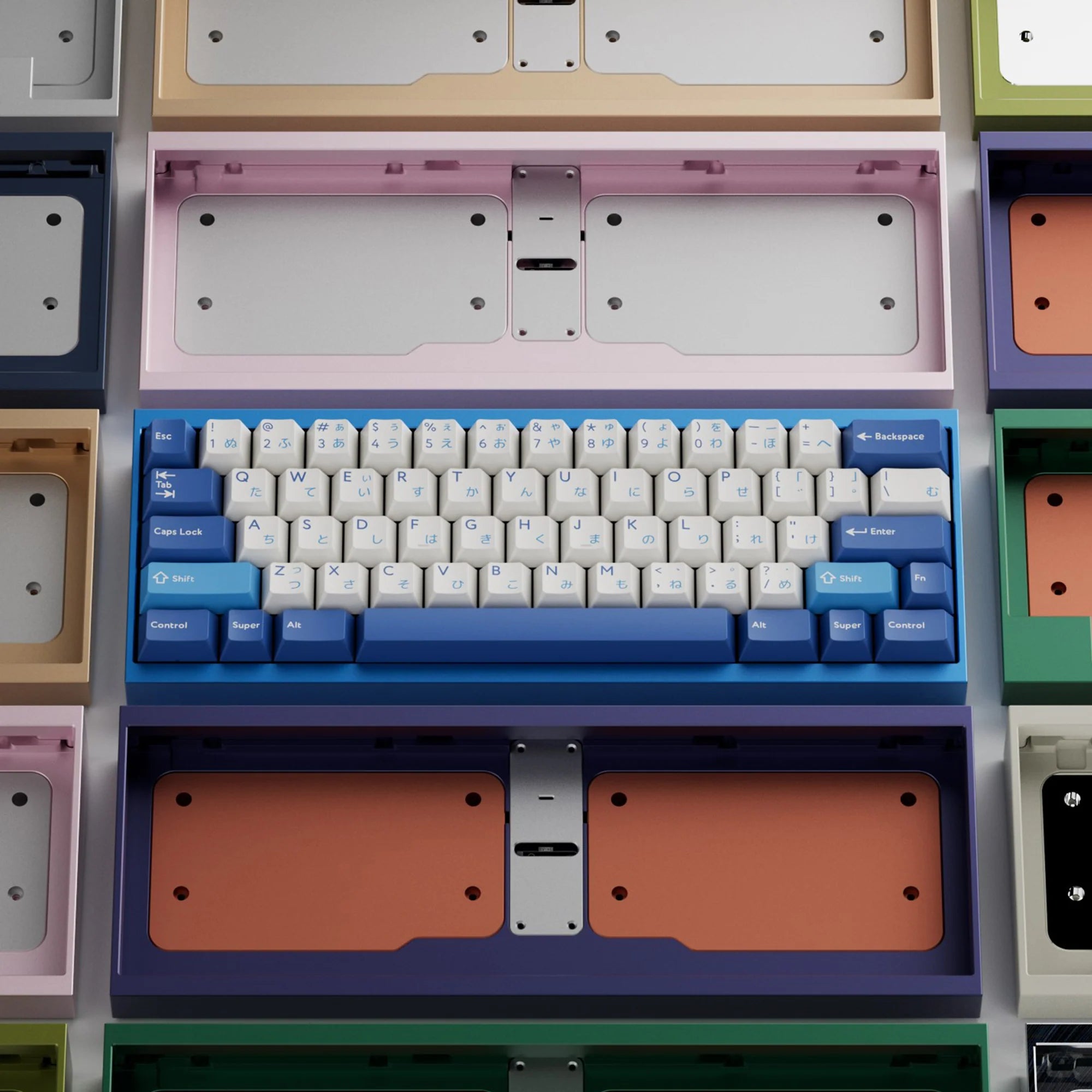

Craftsmanship & Finish

Expertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Structural Integrity

Internally, the Tofu60 3.0 carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.

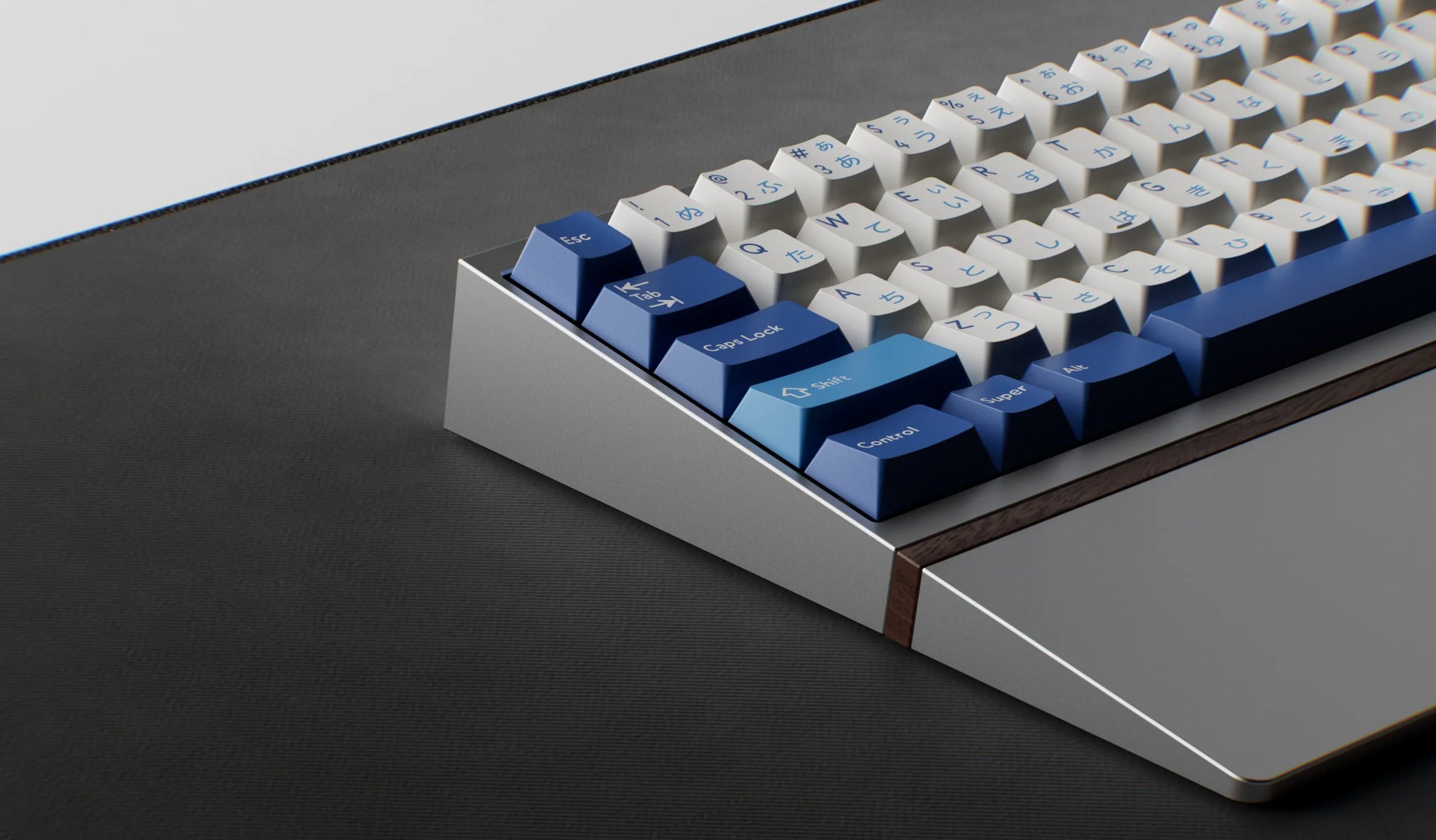

Visual Language

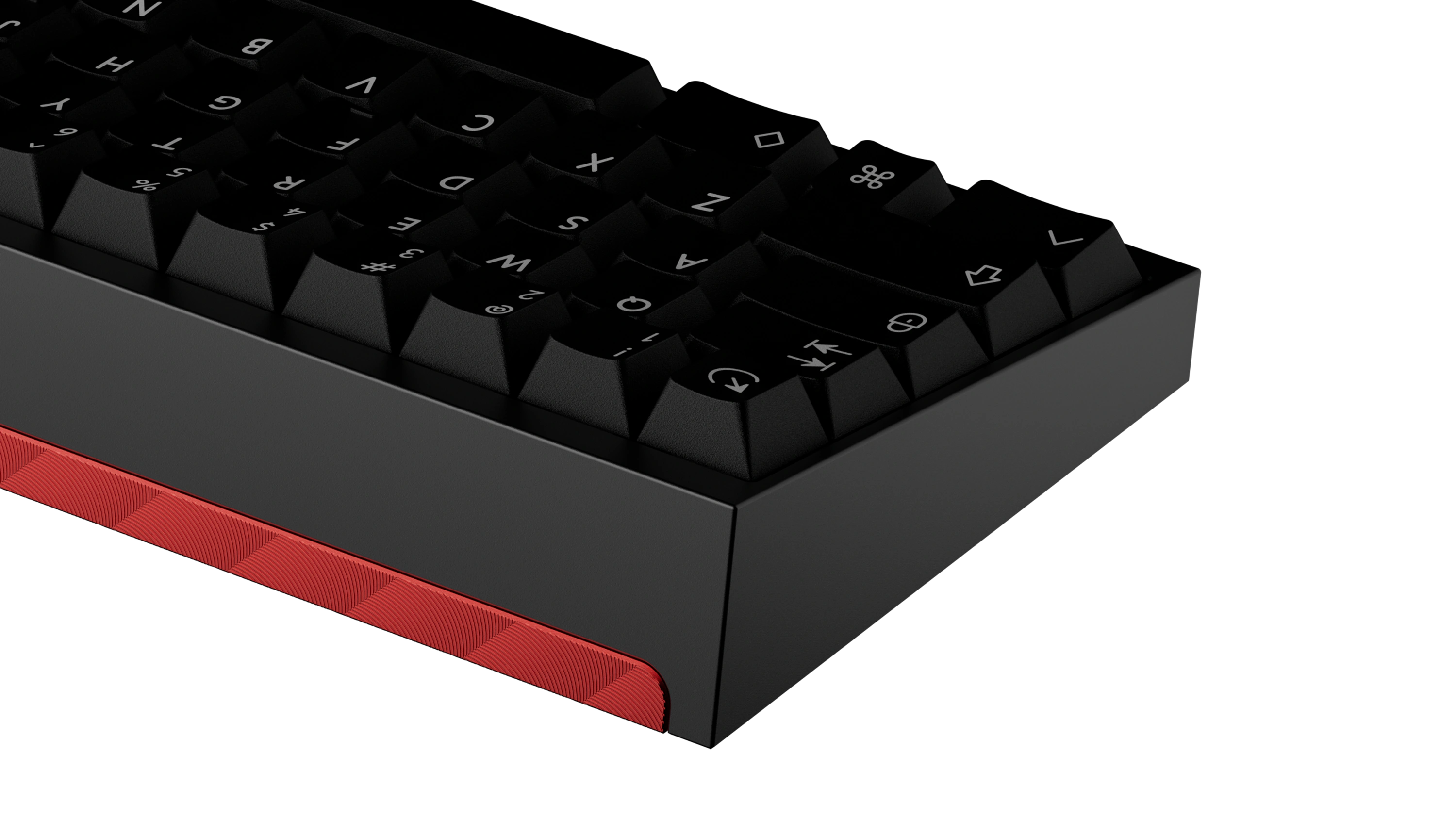

Visually, the Tofu60 3.0 introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.

Integrated ForceBreak System

The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specs

Top case material: Aluminum (anodized/e-coating/RAW)

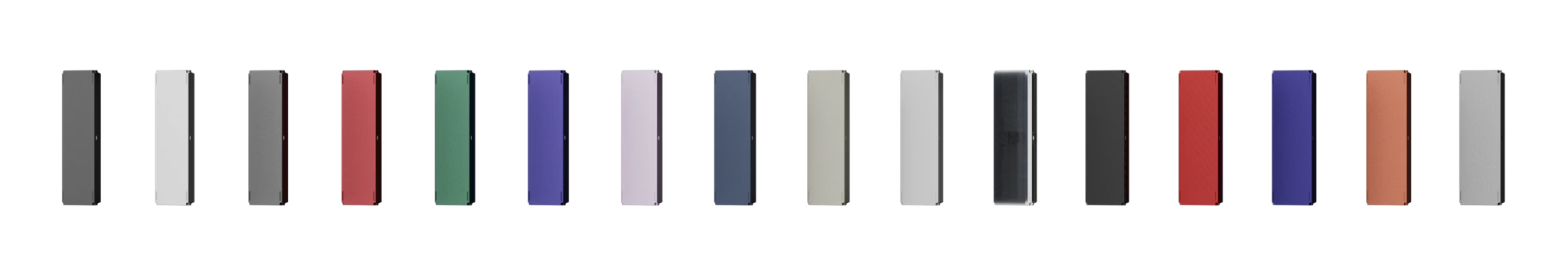

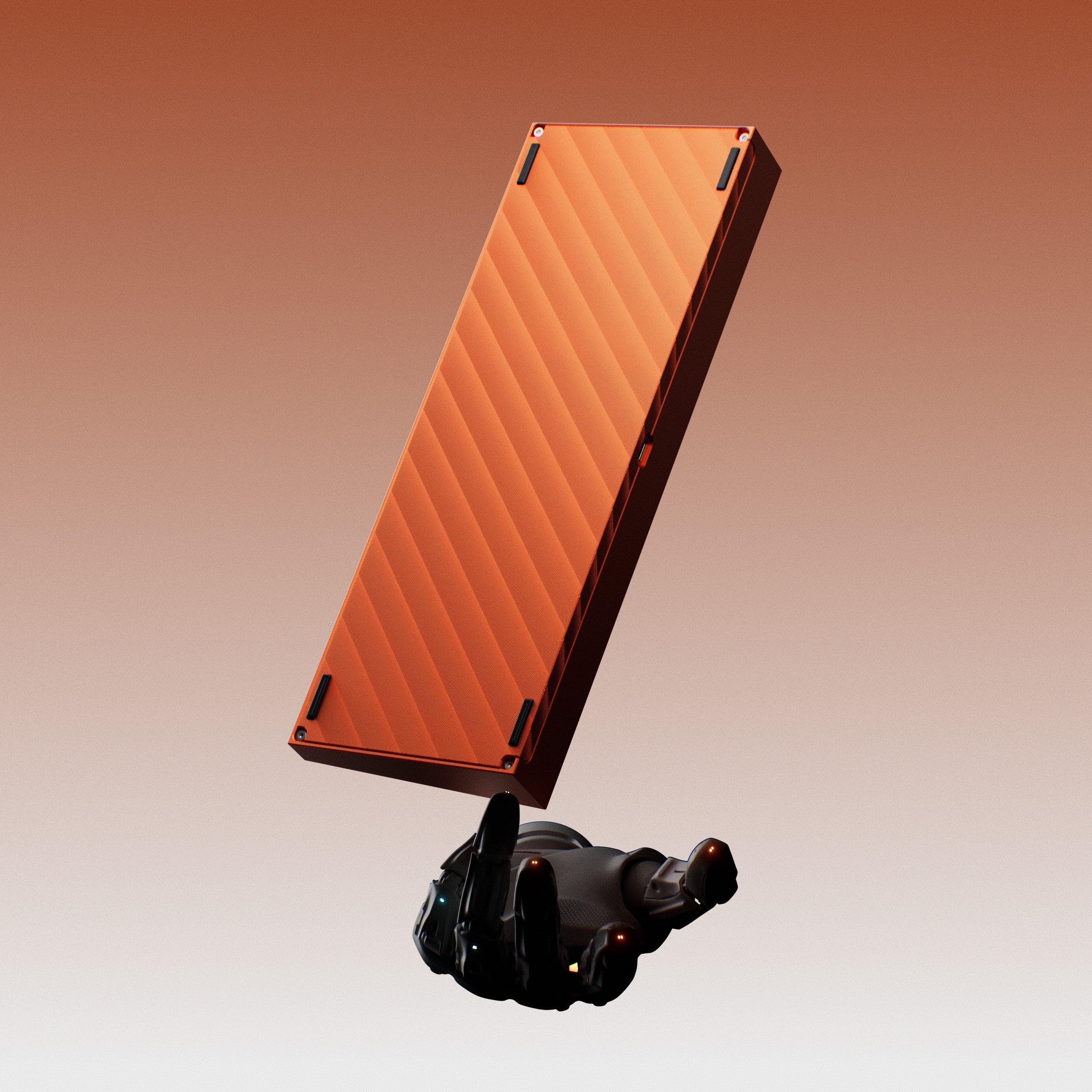

Bottom case material: Aluminum/Copper/Stainless Steel (anodized/e-coating/RAW/textured/Sandblasted)
Mounting style: Top Mount/PCB Gasket
PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
Plate: Alu/Carbon fiber/PC/PEI/FR4 Plate
Typing angle: 9 degree
Weight bar: Aluminum, Stainless Steel, and Copper
Designer: Wei

Mounting Style

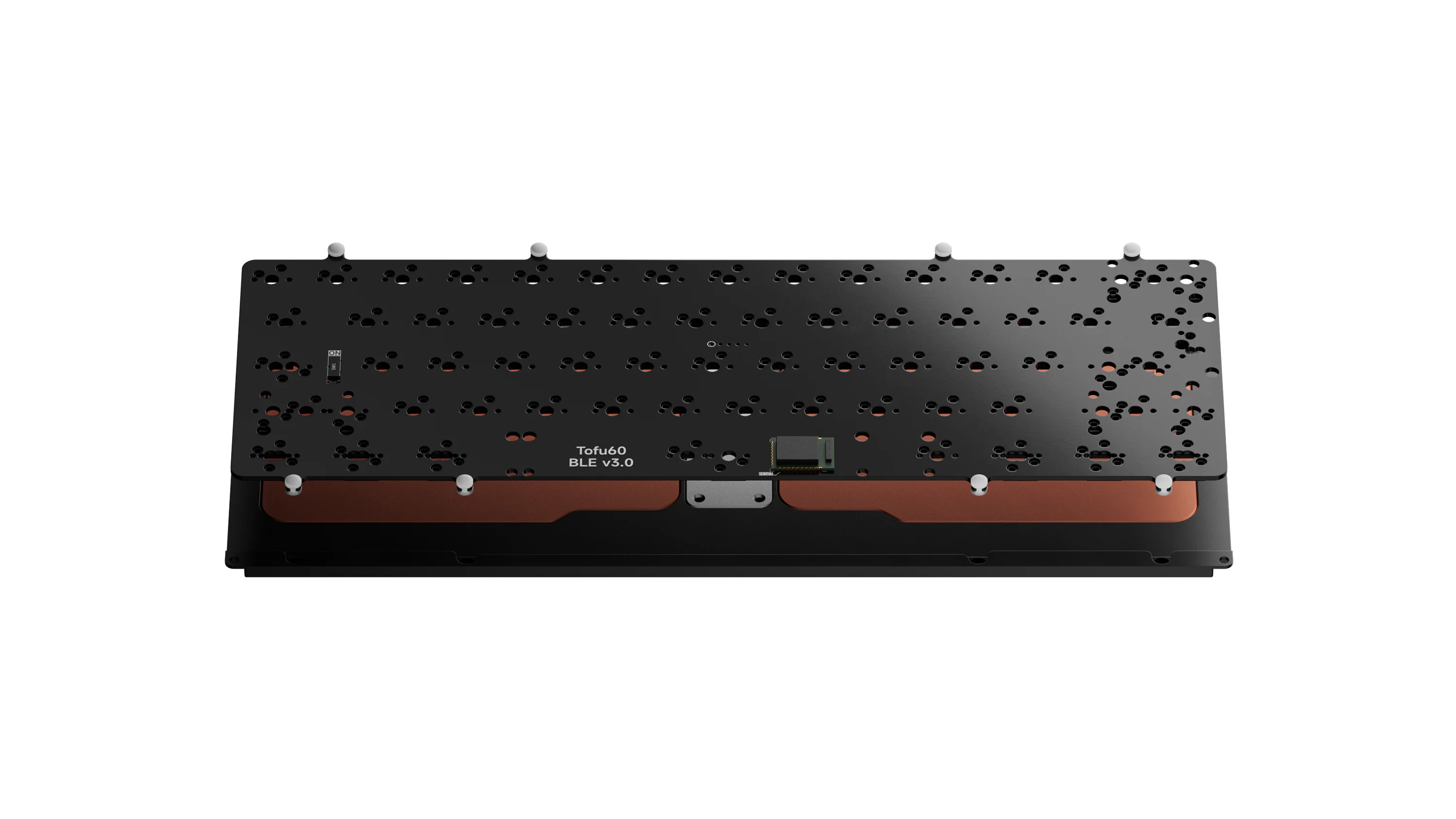

Engineered for Softness

Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.

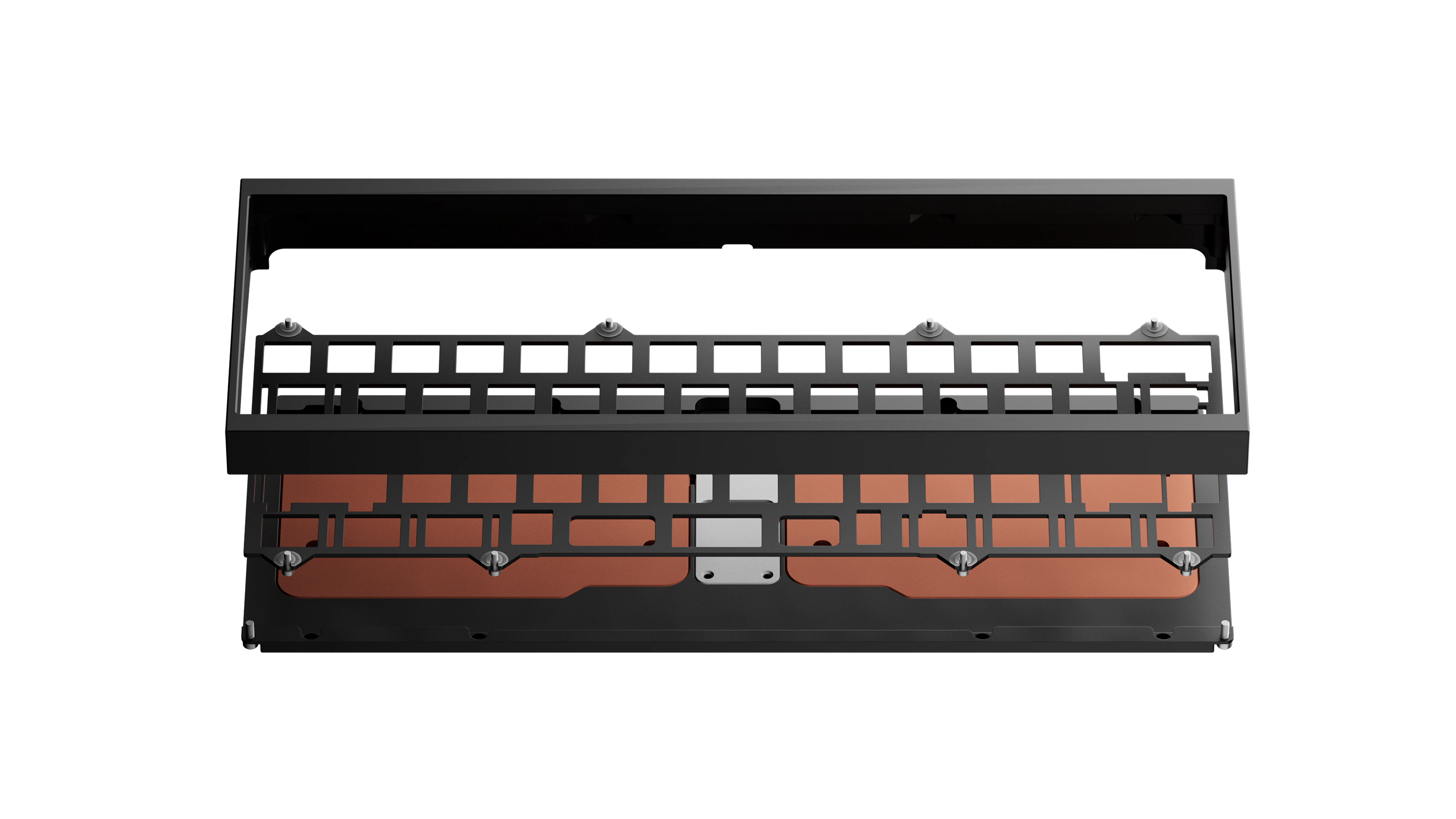

Optimized TOP Mount Structure

To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

Plateless Build Potential

Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Plate-Mount Silicone Dampeners

Silicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise
